Slim Sliding Doors
Cortizo Plus Glide

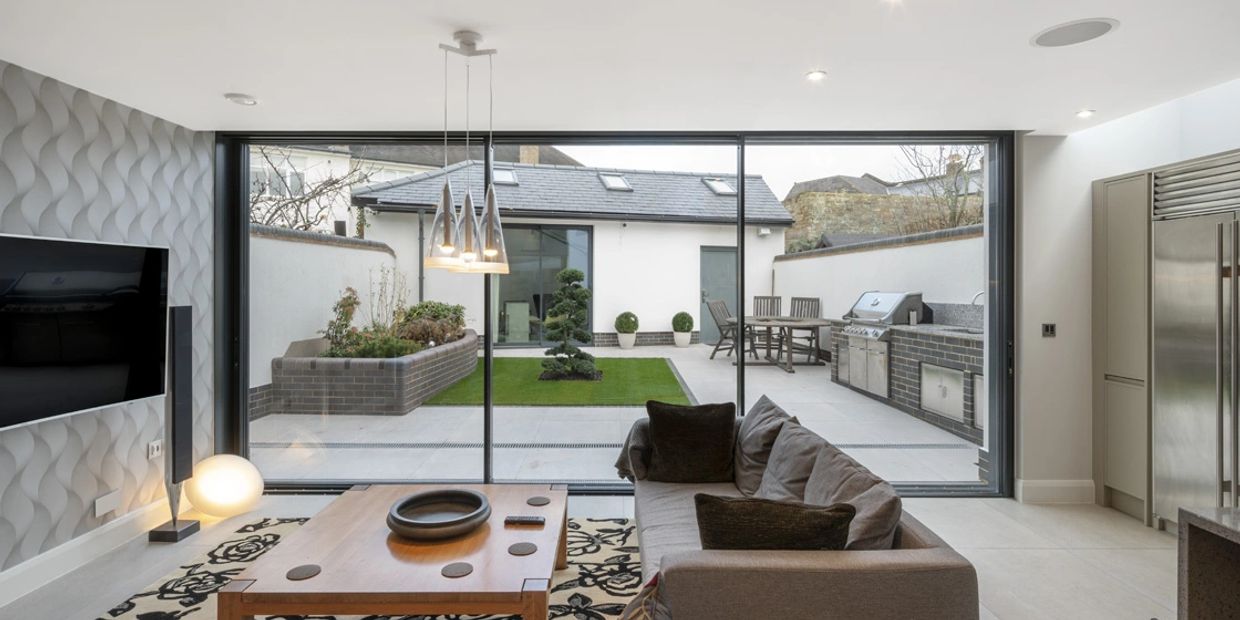

The PlusGlide Vision system is designed to suit large dimension sliding doors with minimal sightlines, perfect for architecturally designed properties and contemporary design The product offers up to 94% glass area which is substantially more than a typical sliding door. Single, double, or triple track options are available with between 2 and 6 panels each up to a maximum of 2.5 metres by 3 metres high with a corner option. The face and frame are designed to be set in the floor and reveals to hide as much profile as possible.
Information
Key Information
• Interlock sightline of only 20mm
• Monorail, twin or triple track options
• Dedicated external drain channel is also possible.
• Stainless steel rollers ensure smooth track running
• Locking is through a slim lever arrangement with keeps set in the frame
• Corner solution
• Max glass weight 320kg
Technical Information
Up to 30mm Glazing
Air permeability Class 4
Water tightness class 7A/9A
Wind resistance Class C5
U-values from 1.3W/m2k
Noise protection up to 41dB acoustic reduction
